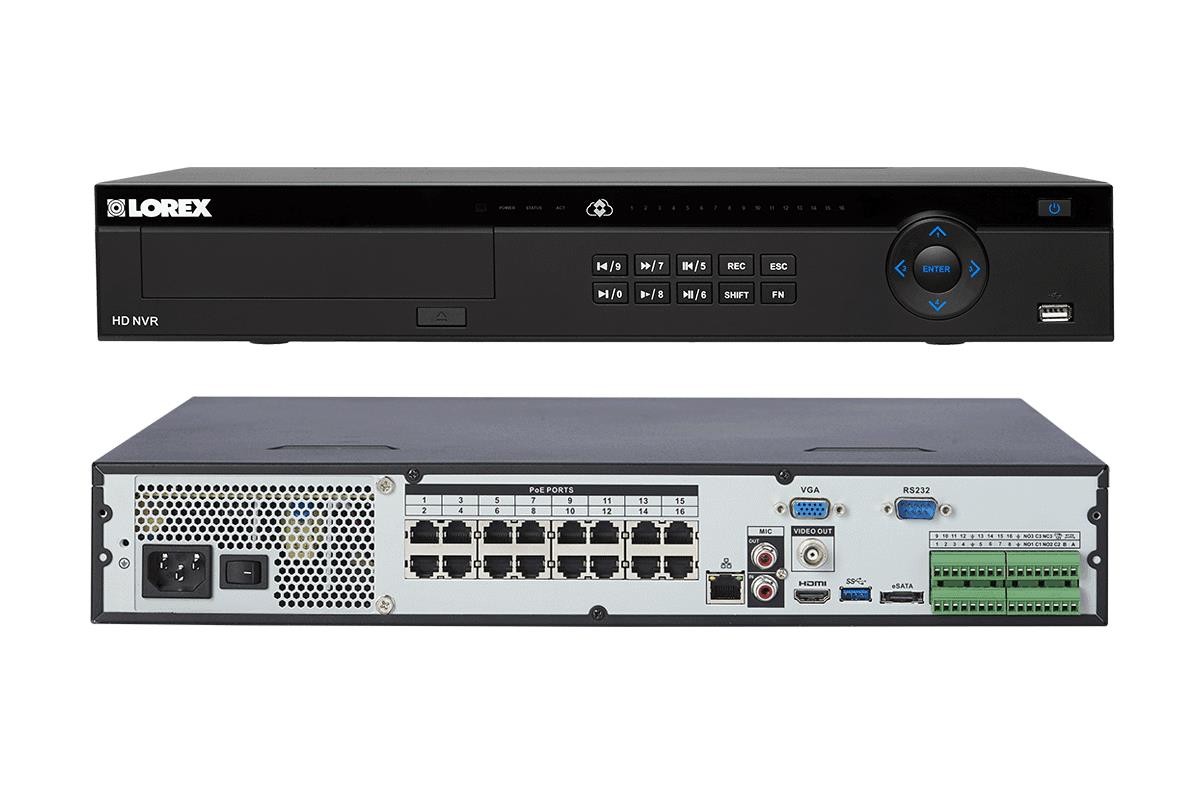

Lorex NR8163 2K Extreme HD Resolution 16 Channels 3TB NVR with 16-Port

Lorex NR8163W 2K 16 Channel 3TB Extreme HD Security System NVR, PoE, Black (USED)2K Extreme HD Security System NVR - 16 ChannelNR8163W At the forefront of network security, the NR8163 network video recorder (NVR) supports 2K extreme HD resolution on all 16 channels. Never miss the vital details you need with top-quality image resolution and smooth on-screen movement. The future of home and business do-it-yourself security, the NR8163 Series NVR features a simple and flexible installation that will have your system up and running in no time. Supports 2K extreme HD resolution The sixteen-channel NR800 Series NVR can record stunning 2K resolution video on every channel. This ability will deliver a new level of detail and clarity when combined with 2K resolution security cameras. 2K resolution will add an increased ability to zoom in on distant objects so you have a better chance of identifying vital details such as faces. This NVR can also support a wide range of our compatible 1080p digital IP security cameras, so you can combine 2K and 1080p security cameras within the same system. Which Cameras Work with the NR800 NVR? Our NR800 Series network video recorder (NVR) is compatible with many of Lorex HD and 2K security cameras. Click the button below for the complete list: Camera Compatibility Chart Remote mobile viewing with FLIR Cloud™ The NR8163 is compatible with our new hassle-free FLIR Cloud™ connection service. With FLIR Cloud™ connectivity, you can view your security system from virtually anywhere in the world using a smartphone, tablet, or computer. With iOS®, Android™ and PC options, your security system will always be at your fingertips. Simply download the free app, scan the NVR’s QR code, and start viewing the live feed (or recorded playback) of all of your cameras. In-app options such as push notifications and instant email alerts for motion-triggered events will keep you up-to-date to any movement caught by your IP security cameras. IP cameras with PoE cabling for flexible installation he NR8163 NVR uses power-over-ethernet (PoE) technology - an all-in-one solution that cuts cost and installation time. Simply connect your IP cameras to one of the NVRs 16 integrated PoE ports with a single cable that provides both power and video transmission. This allows you to position your IP cameras where you need them most without the need to have a power outlet nearby. An NVR like this can also incorporate a PoE switch. This not only allows you to decrease the amount of cabling needed for larger installations, it will also open the door to add more cameras to your security system. Heavy-duty high-efficiency HDD The 3TB security certified hard drive within the NR8163 can safely store weeks (or even months) of recorded security footage. Engineered for the constant workload required by security monitoring, this HDD can continue to record even while you watch recorded footage. Pre-schedule recording times or adjust the NVR to record at a lower resolution to extend available hard drive space. You can also save storage space by recording only when movement is detected. Visit our Hard Drive Calculator to estimate your desired specifications. NVR Network Video Recorder

Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.

HD 1080P Resolution 1920 x 1080 pixels

Record and capture all the details, don't miss out anything. Full HD resolution with accurate color reproduction brings your recorded video to life.

24/7 100% Duty cycle hard drive pre-installed

The hard drives are designed to work in a security environment, including simultaneous recording & playback from various streams.

Lorex Cloud Connection and Apps

Lorex Cloud will help simplify and organize your life by keeping track of all your security cameras from anywhere in the world on any iPhone®, iPad® or Android® devices.

NR8163 16 channel, digital 2K security NVR:

• 2K recording - double the resolution of HD 1080p
• Real-time recording at 30fps per channel
• 16 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
• Automatically detects compatible IP cameras in the network1
• 24/7 security-grade pre-installed hard drive2
• H.264 video compression2
• Expandable high capacity storage
• Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive3
• Pentaplex operation - view, record, playback, backup & remotely control the system simultaneously
• Simultaneous playback and live view on the same screen4
• Selectable area digital zoom in live view and playback
• Dynamic click-and-drag camera channel assignment
• Flip and mirror camera view settings
• Convenient front panel button controls
• Accurate time stamps with NTP & daylight savings time
• Instant USB backup of live video from selected camera
• Dual video outputs (HDMI & VGA) to connect multiple monitors
• HDMI output (HDMI cable included) for simple connection to HD TVs
• Keep up to date with automatic firmware upgrades5
• 3-step remote view with Lorex Cloud™6
• PC and Mac compatible7
• Free iOS and Android compatible apps with live viewing, playback, video recording, and snap shot7
• Dedicated iPad app with multi-channel live viewing and playback7
• Push notifications of motion events
• Instant email alerts with snap shot attachment
• Dual streaming to conserve bandwidth
• Continuous, scheduled and motion recording
